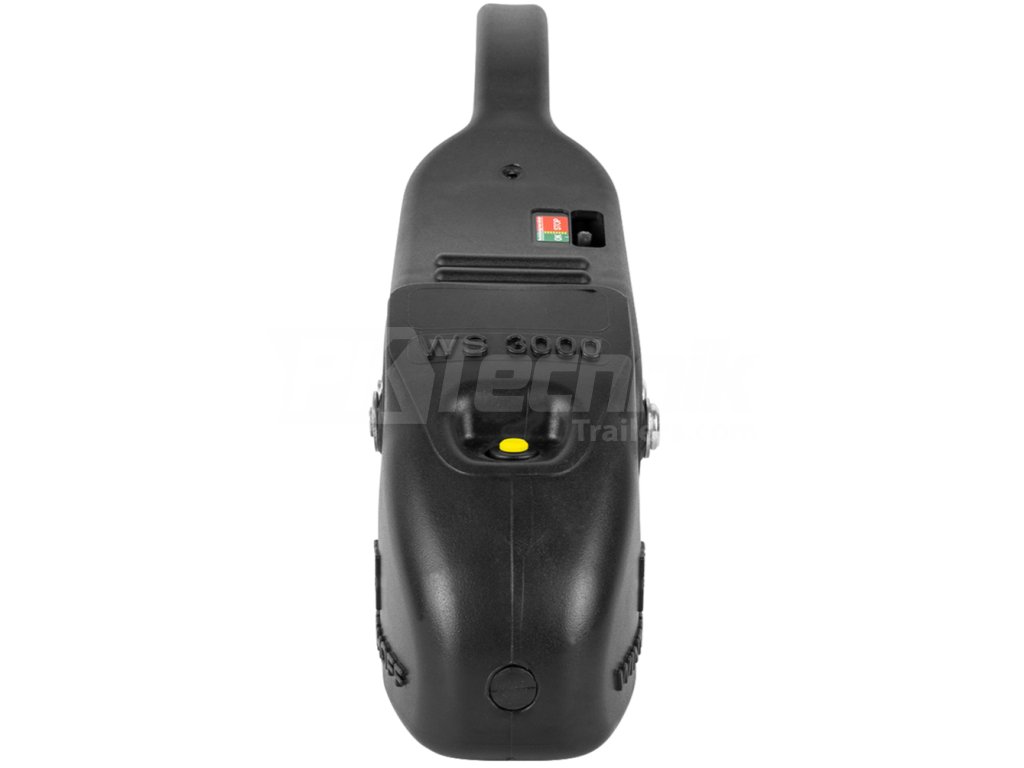

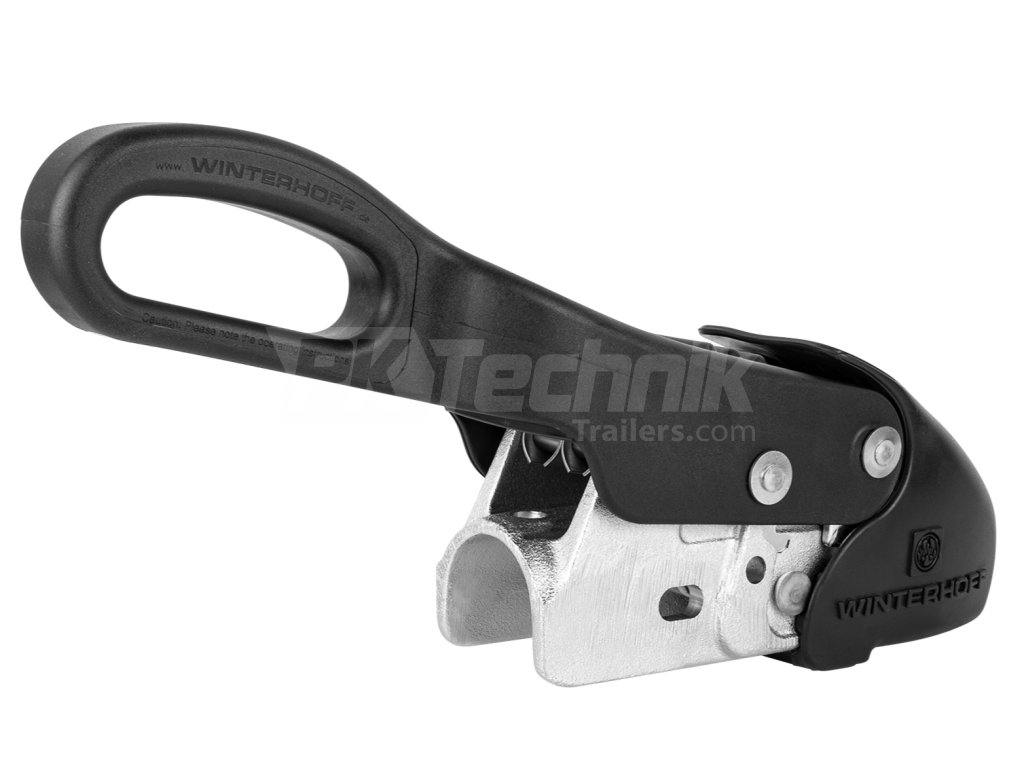

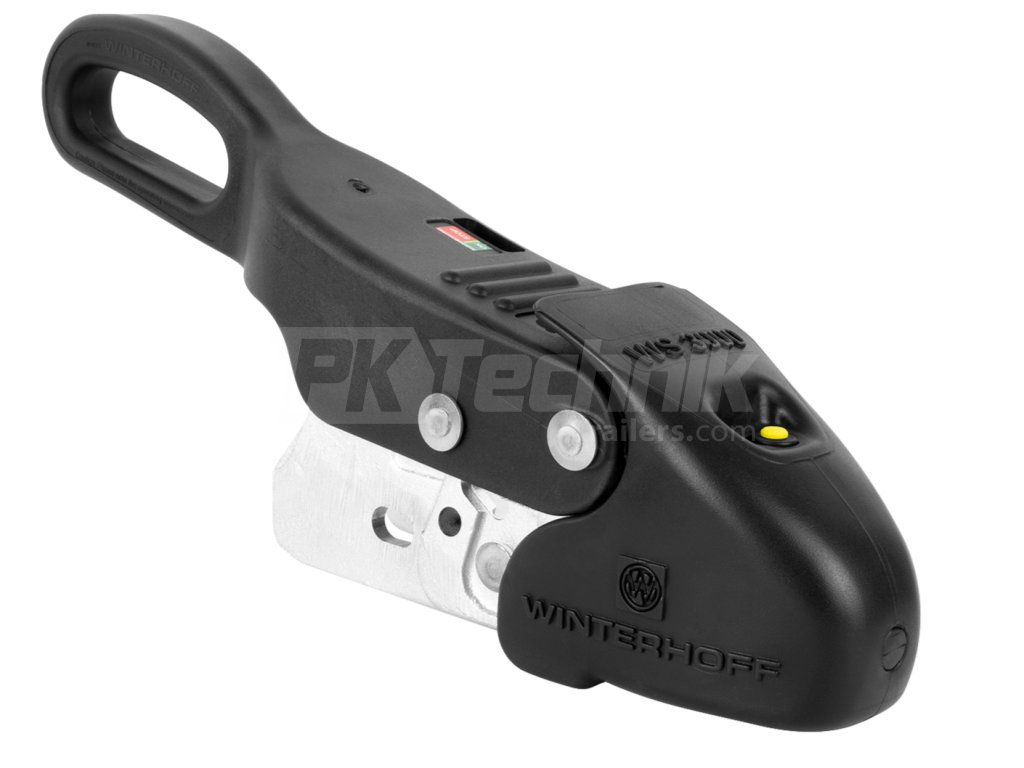

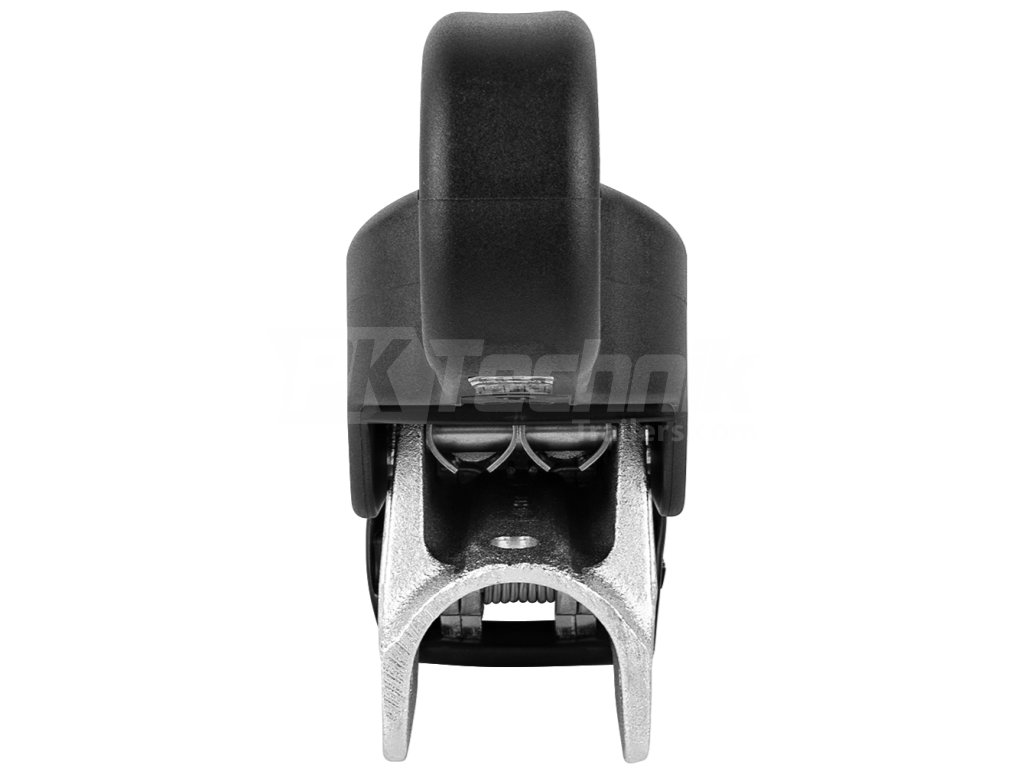

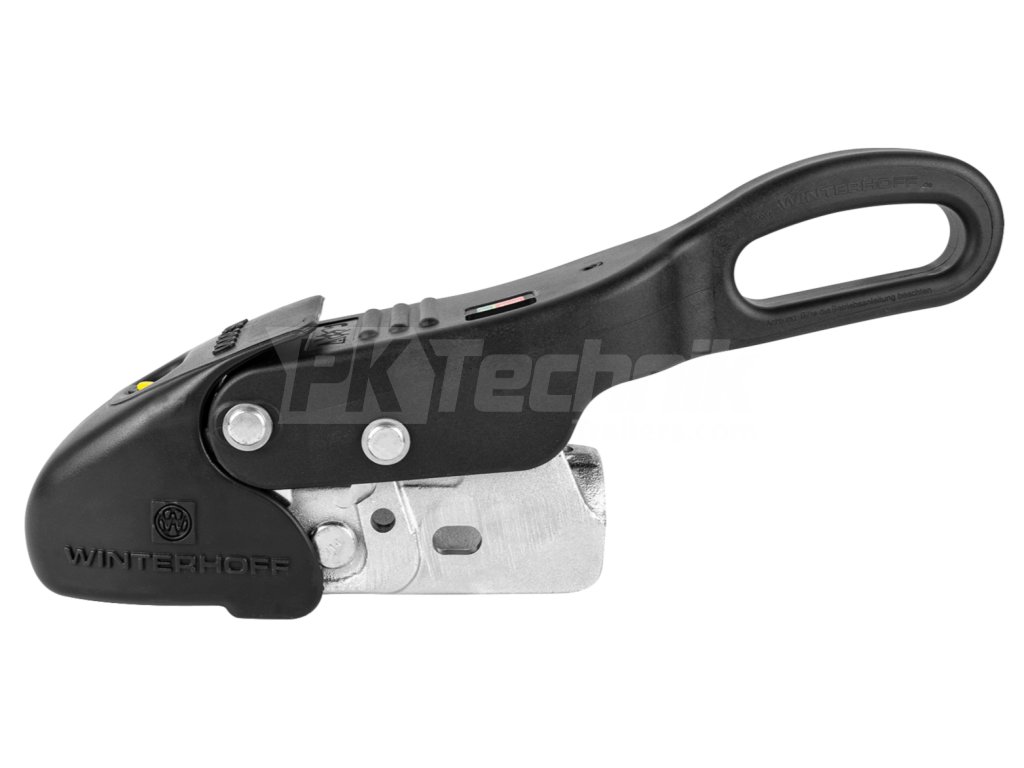

Stabilizer Winterhoff WS 3000 D50, bore K14/12 mm

The Winterhoff WS 3000 stabiliser is a stabiliser coupling for trailers with a maximum technically permissible weight of up to 3000 kg. Option for fixing with cross bolts - one horizontal M14 bolt at the front and one vertical M12 bolt at the rear.

• Allows for safer driving at higher speeds, reduces trailer oscillation and vibration while driving.
• For use on trailers weighing at least 200 kg.
• Stabilization of unwanted trailer swings is ensured by the ball stud being retracted by two friction segments located in the axis of the direction of travel.
• Stabilizing couplings are used exclusively dry (without the use of lubricants). ATTENTION!!! When using a stabilizing clutch on a lubricated ball stud, the friction segments will be degraded and the stabilizing effect will be significantly reduced.
• The Winterhoff WS 3000 stabiliser joint is equipped with a correct connection indicator and a wear indicator for the ball coupling and friction segments.
• The stabilising coupling joint is supplied complete with fasteners and spacers for use on various drawtube diameters.
• Can be mounted on 50 mm diameter ramp brake pull tubes.
• The friction segments are replaceable and their wear rate can be monitored externally without the need for disassembly.
• The Winterhoff ROBSTOP lock can be purchased as an optional accessory, see related products below.
• Note: The use of stabilizing couplings is not suitable on balls attached to the hitch bracket with a single vertical bolt. The moment the friction segments grip the ball tightly and there is a slight sideways rotation during travel, the vertical bolt could be released from the bracket.
• Weight: 5.8 kg

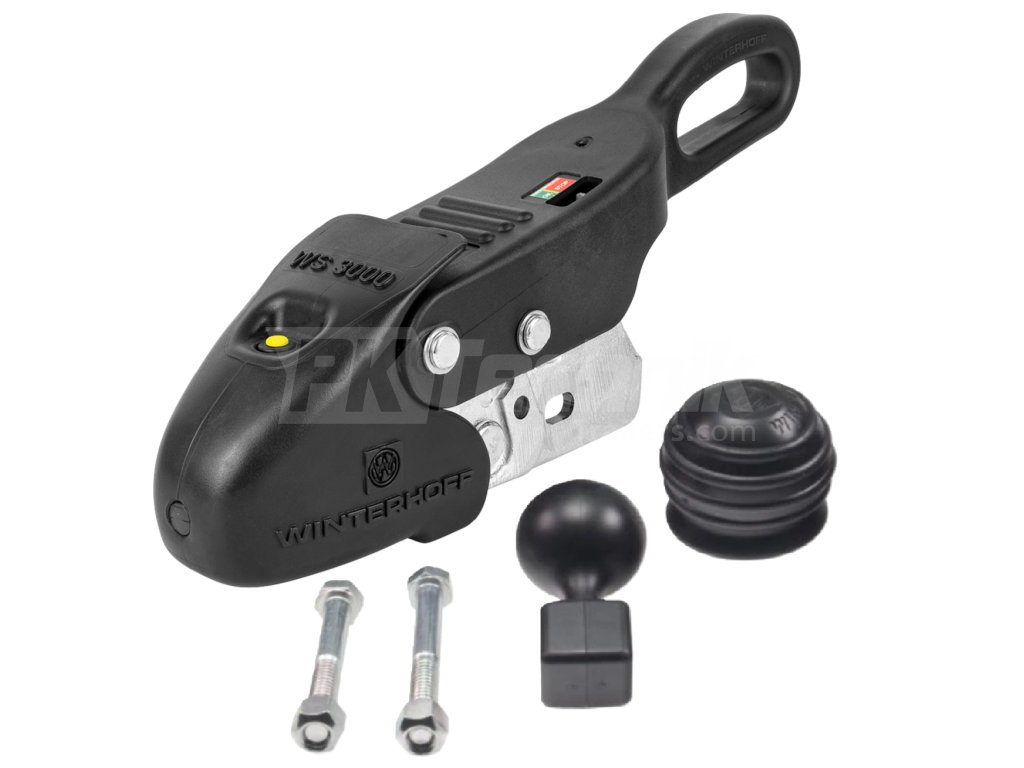

Package contents:

• 1x stabilizer Winterhoff WS 3000
• 1x M14 hexagon head screw
• 1x M12 hexagon head screw
• 1x self-locking nut M12
• 1x self-locking nut M14
• 1x saddle pad
• 1x pin for securing the shock absorber. brakes against ejection
• 1x Winterhoff Safety Ball
• 1x Winterhoff ball cap
