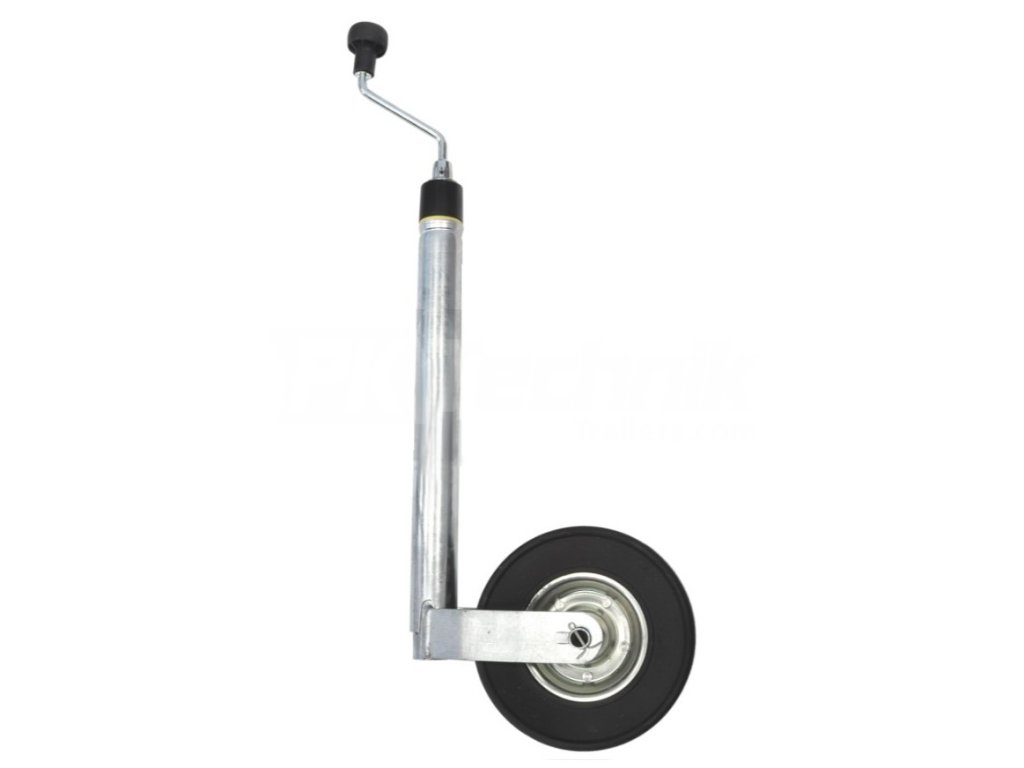

Support wheel WINTERHOFF ST, 48 mm, 150 kg (with load indicator)
Trailer support wheel with load indicator marker WINTERHOFF with maximum load capacity 150 kg. Mounting in a holder with a pipe diameter of 48 mm.
- wheel diameter: 225mm
- wheel width: 70mm
- for pipe: 48 mm
Trailer support wheel with load indicator, brand WINTERHOFF , with a maximum load capacity 150 kg. Mounting in a holder with a pipe diameter of 48 mm.
When handling the trailer, the direction of travel can be easily changed, the extendable part of the support wheel rotates around its axis when extended.
TECHNICAL PARAMETERS:
- wheel diameter: 225mm
- wheel width: 70mm
- for pipe: 48 mm
- disc material: steel
- weight: 6.62 kg
- max load: 150 kg
- Dial length: 220 mm
- overall height: 595 mm (without handle)
| Category: | Support wheels for trailers |
|---|---|
| Weight: | 10 kg |
| Typ disku: | ocel |
| délka vytočení: | 220 |
| hmotnost (kg): | 6.62 |
| maximální povolené statické zatížení (kg): | 150 |
| montáž: | do držáku, průměr 48 mm |
| průměr kolečka (mm): | 225 |
| průměr trubky (mm): | 48 |
| šířka kolečka (mm): | 70 |
| ukazatel svislého zatížení: | ano |
| výška (bez kličky) (mm): | 595 |
