Steel rope for winch 12.5 m, 7 mm
- Length: 12.5 m
- Diameter: 7 mm
- breaking strength: 27200 N
- wire strength: 1770 N/mm2
- for winches 500 to 1200 kg

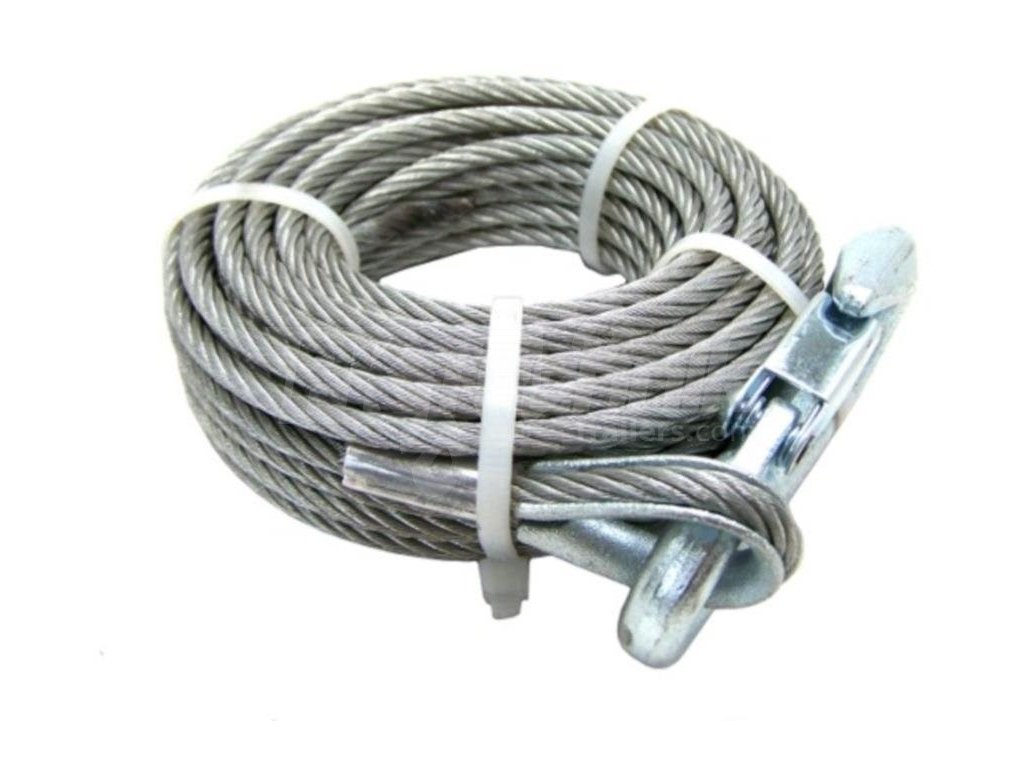

The galvanized steel rope for hand winches 500 to 1200 kg is fitted with a galvanized carabiner hook at one end for easy attachment of the load to be pulled. The rope is constructed of round strands DIN 3060 in the composition 6x19. Thanks to the textile insert, this steel rope is soft, easily flexible with excellent resistance to breakage. Compared to ropes with steel inserts, soft ropes are easier to handle and easier to straighten when unwinding.
- Length: 12.5 m
- Diameter: 7 mm
- breaking strength: 27200 N
- wire strength: 1770 N/mm2
- for winches 500 to 1200 kg
Note: Over time, the rope strands gradually degrade due to use and environmental influences. It is recommended to replace the rope with any damaged strands or partially broken wires with a new one immediately. The rope is not intended for securing loads on the loading area of the vehicle.
The rope design conforms to DIN EN 12385-1/2 and DIN EN 10264-1/2.
| Category: | Ropes and straps for winches |
|---|---|
| Weight: | 2 kg |
| celková délka (m): | 12.5 |
| celková délka (mm): | 12 |
| jmenovitá pevnost drátů (N/mm2): | 1770 |
| pro navijáky: | 900 až 1200 kg |
| průměr lana (mm): | 7 |
| síla zlomu (N): | 27200 |
