Horse trailer CHEVAL LIBERETE® TOURING ONE, black
The Cheval Liberté Touring One is a top-of-the-line travel trailer for transporting onehorse, or one horse and foal (1- 1 1/2 horses). The KNOTT-PULLMAN 2 axles ensure brilliantly smooth driving characteristics, the front unloading ramp is practical for unloading horses that have difficulty reversing. This model also has aluminum wheels.
- Proof: 835 kg
- Operating weight: 765 kg
- Total weight: 1600 kg (possible to 1100 kg)
- Internal dimensions (LxWxH): 318 x 140 x 230 cm
- External dimensions (LxWxH): 452 x 184 x 270 cm
The Touring One trailer from renowned French manufacturer Cheval Liberté is the perfect choice for those looking for a small trailer to transport one horse or mare and foal. Key features of this model include a wide and low front unloading ramp that makes unloading horses easier and faster. The comfortable chassis with KNOTT-PULLMAN 2 axles ensures a smoother and safer ride without unpleasant shocks from the trailer. The floor, side walls, loading ramps and doors are made of durable aluminium profiles.
The excellent workmanship of this trailer and the materials used guarantee a very long service life, as evidenced by the manufacturer's warranty.
Technical parameters Cheval Liberté Touring One:
- Proof: 835 kg
- Operating weight: 765 kg
- Total weight: 1100 - 1600 kg
- Internal dimensions (LxWxH): 318x140x230 cm
- External dimensions (LxWxH): 452x184x270 cm
- Walls: 18 mm thick ALULINE aluminium panels
- Warranty on ALU LINE sidewalls: 5 years
- Straight standing: for 1-11/2 horses
- Aluminum wheels: 185/65 R14
- Steel wheels: 165/70 R13
- Chassis: PULLMAN 2
- Floor: all aluminum
- Speed: 140 km/h
Equipment of the Cheval Liberté Touring One trailer:
- Axles KNOTT PULLMAN 2 with springs and shock absorbers
- Aluminium floor 25 mm + 8 mm PVC
- Side walls ALULINE panels 18 mm thick
- Front aluminium ramp with anti-slip protection
- Rear ALU ramp/doors openable; trailer is passable from both sides
- Hot-dip galvanized steel frame
- Rear rolling AIRTECH tarpaulin
- Side PVC interior protection
- 3. rear brake light
- 2x side doors
- Internal partition
- Panic lock
- 4x ventilation window
- 2x chest bar
- Interior light
- Support wheel
Additional equipment of the Cheval Liberté Touring One trailer:
- roof ventilation: Ventilation window, roof ventilation
- surcharge for 4 ALU wheels for Cheval Liberte trailers
- spare wheel kit: Spare wheel set R13 Cheval
Manufactured Cheval Liberté trailer body colours:
- Light grey (RAL 7040) (production ended 6/2023)
- Dark grey (RAL7016 + RALL7011)
- Black (RAL 28020)
- Blue (RAL 5011)
- White (RAL 10000)

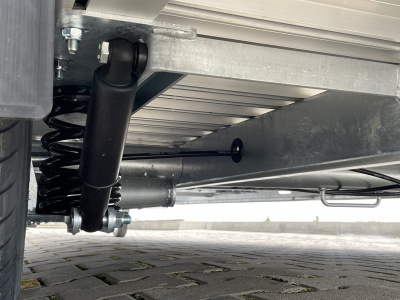

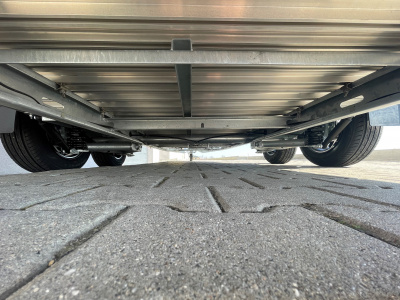

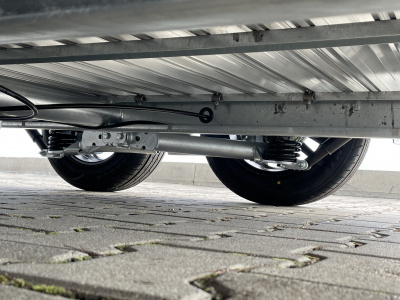

The perfect trailer chassis - PULLMAN2
The Cheval Liberté chassis has a perfect independent suspension (Pullman2) for each wheel, equipped with a spring and shock absorber. This makes driving the trailer very comfortable not only for the animal being transported, but also for the towing vehicle and its crew. No more unpleasant bumps from the trailer.
About Cheval Liberté and Debon
French company Cheval Liberté, which has been on the market since 1995, is an absolute top European trailer sales. Under the brand name Debon develops and sells box and folding flatbed trailers, drawing on industry experience and engineering gained over 25 years in the horsebox business.
Debon trailer standards are approaching automotive standards thanks to unrivalled Pullman 2 chassis with independent suspension on each wheel for a perfectly smooth ride, together with an aerodynamic body shape debon trailers can thus offer not only a significant fuel saving, but above all very high comfort of the towing vehicle and the transported cargo.
"In Western European markets, Cheval Liberté has great 50% registration of new trailers for the transport of livestock and horses. The other 50% is held by all other manufacturers combined. This in itself proves the fact that Horse Liberty is the absolute market leader in their field," he says Pavel Kabele, company owner PK Technik Trailers, which is the official importer of Cheval Liberté and Debon trailers for the Czech Republic.
"This exceptional popularity and quality is also the basis for the Debon box trailer brand, which is unrivalled on the market thanks to its perfect chassis and aerodynamic body shape. The quality of the trailers is also reflected in the fact that Debon box trailers claimability is essentially zeroin our dealership."
Cheval Liberté product videos:
| Category: | Cheval Liberté TOURING ONE horse trailers |
|---|---|
| Weight: | 745 kg |
| Typ přívěsu: | Přívěs pro 1 koně |
| Bržděný: | ANO |
| Použití přívěsu: | Přeprava koní |
| Počet přepravovaných koní: | pro 1 koně |
| Sedlovna: | NO |
| Počet náprav: | 2 |
| Typ náprav: | nezávislé zavěšení kola |
| Celková hmotnost: | 1600 kg |
| Provozní hmotnost: | 745 kg |
| Doložitelnost: | 855 kg |
| Celková šířka: | 452 cm |
| Celková šířka: | 184 cm |
| Celková výška: | 270 cm |
| Rozměry ložné plochy: | 318 cm |
| Šířka ložné plochy: | 140 cm |
| Výška ložné plochy: | 35 cm |
| Konstrukční rychlost: | 140 km/h |
| Brakes: | Braked |
| Sklápění: | NE |
| Tlumiče náprav: | ANO, ANO, KNOTT |
