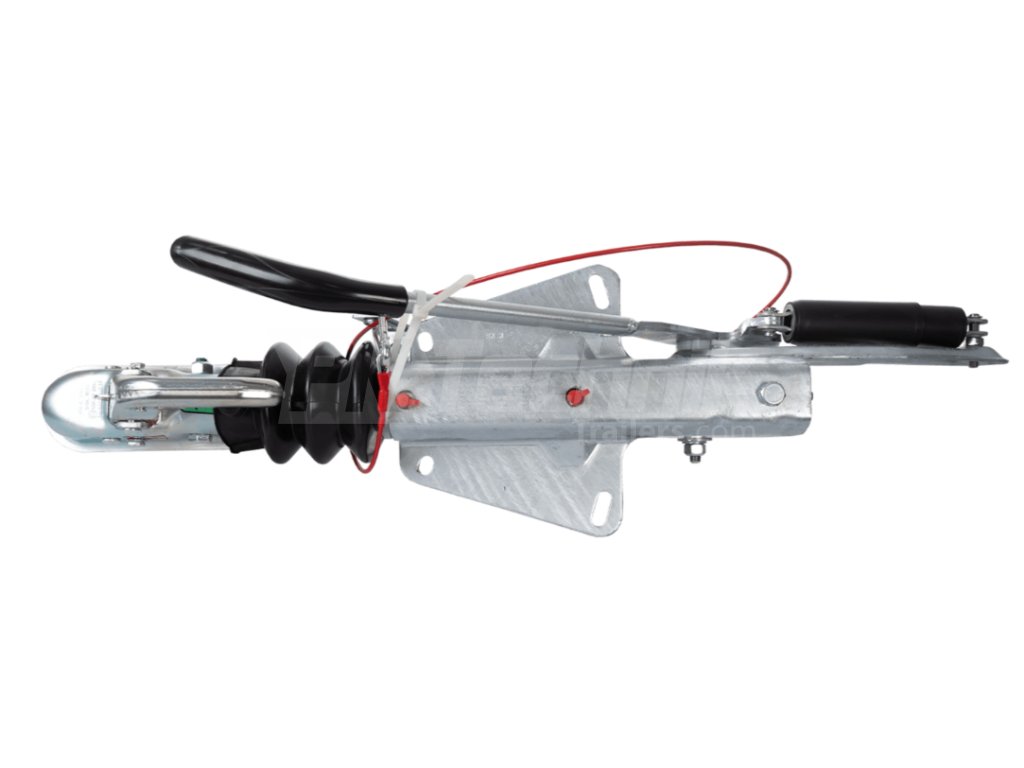

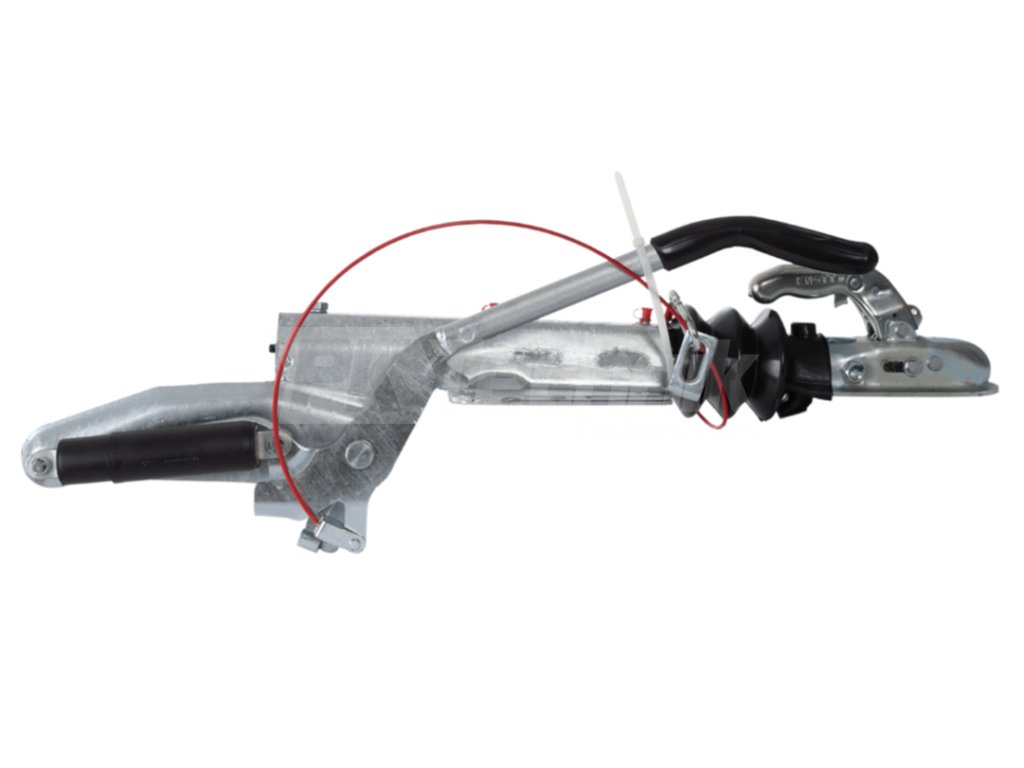

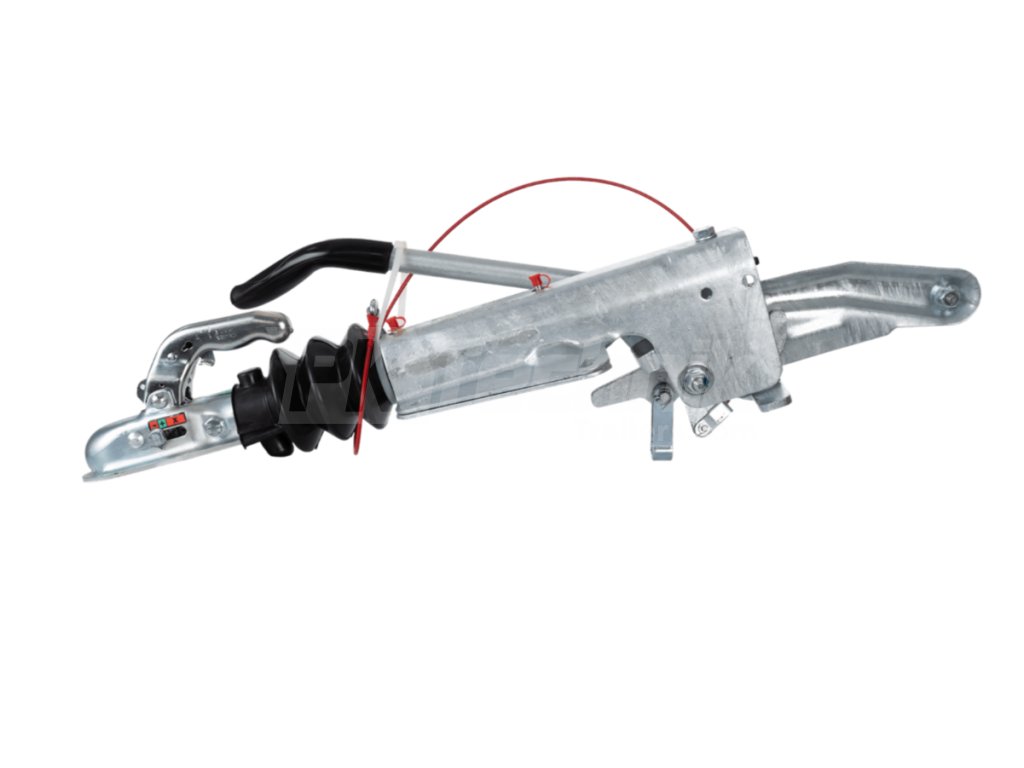

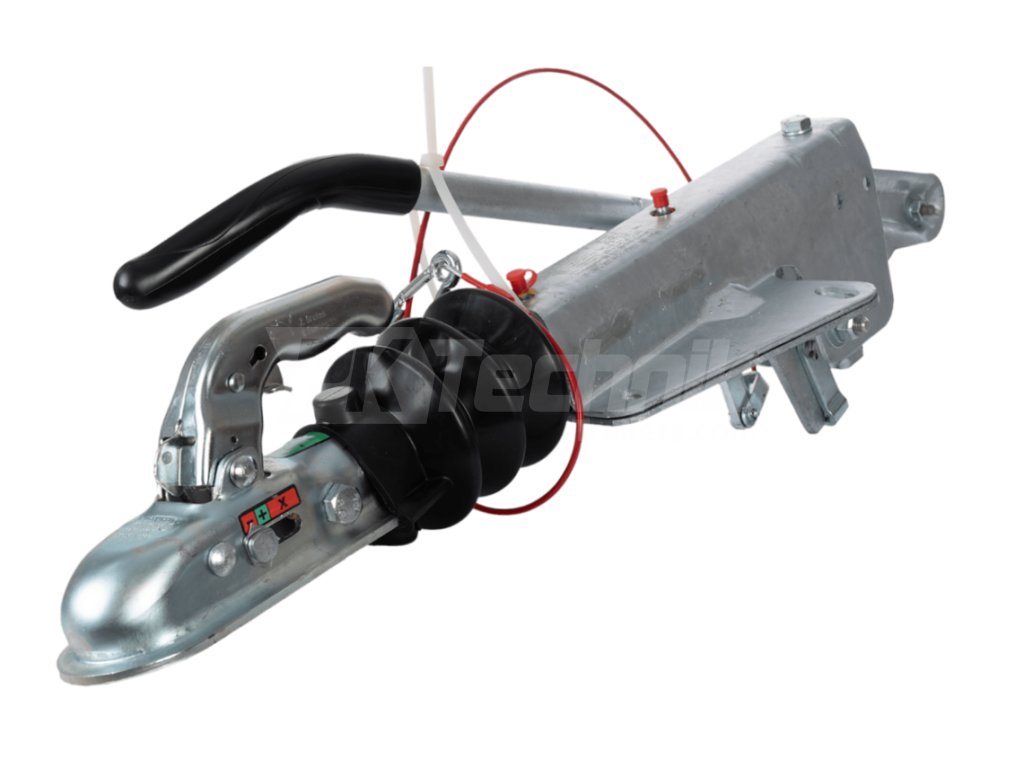

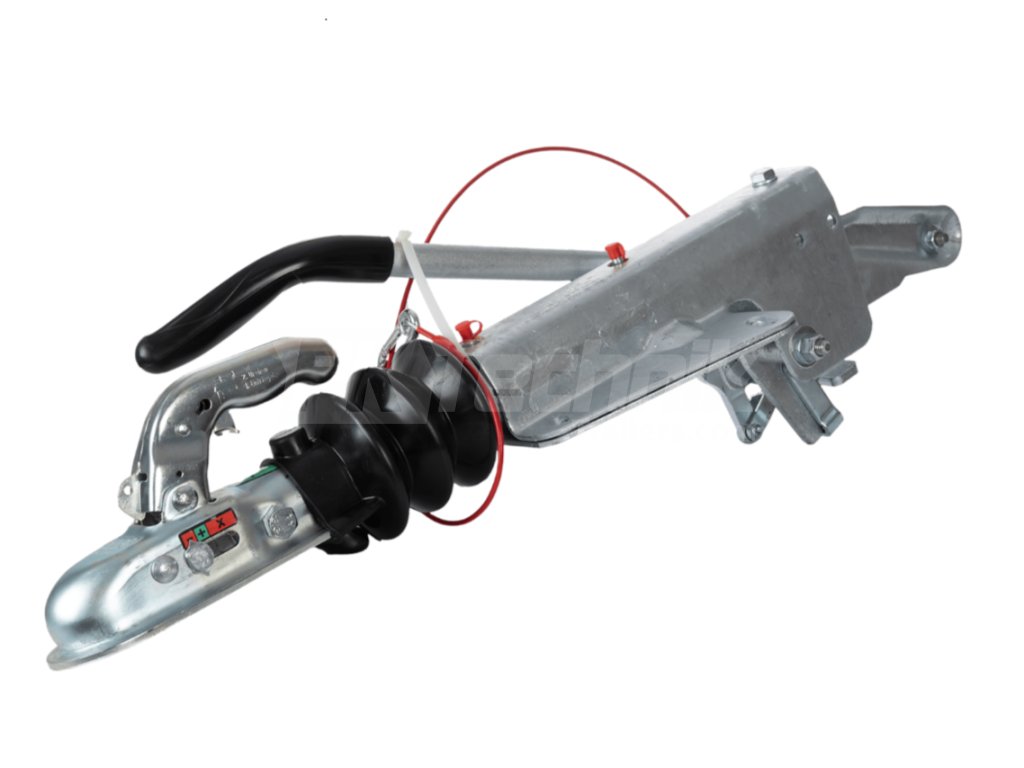

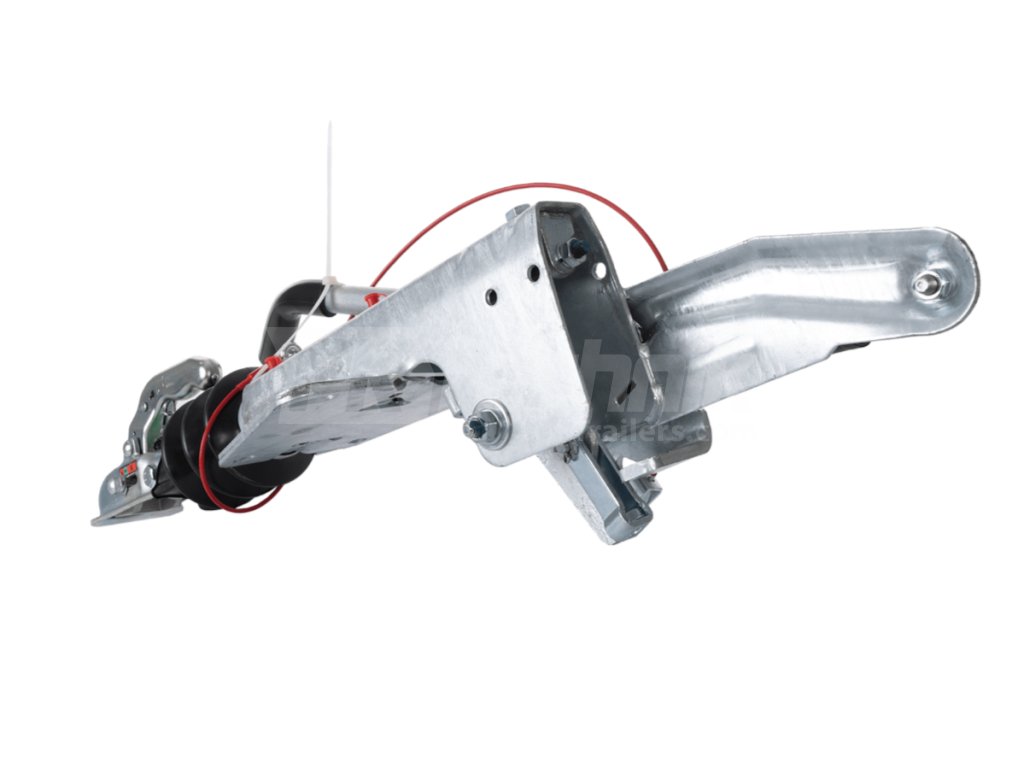

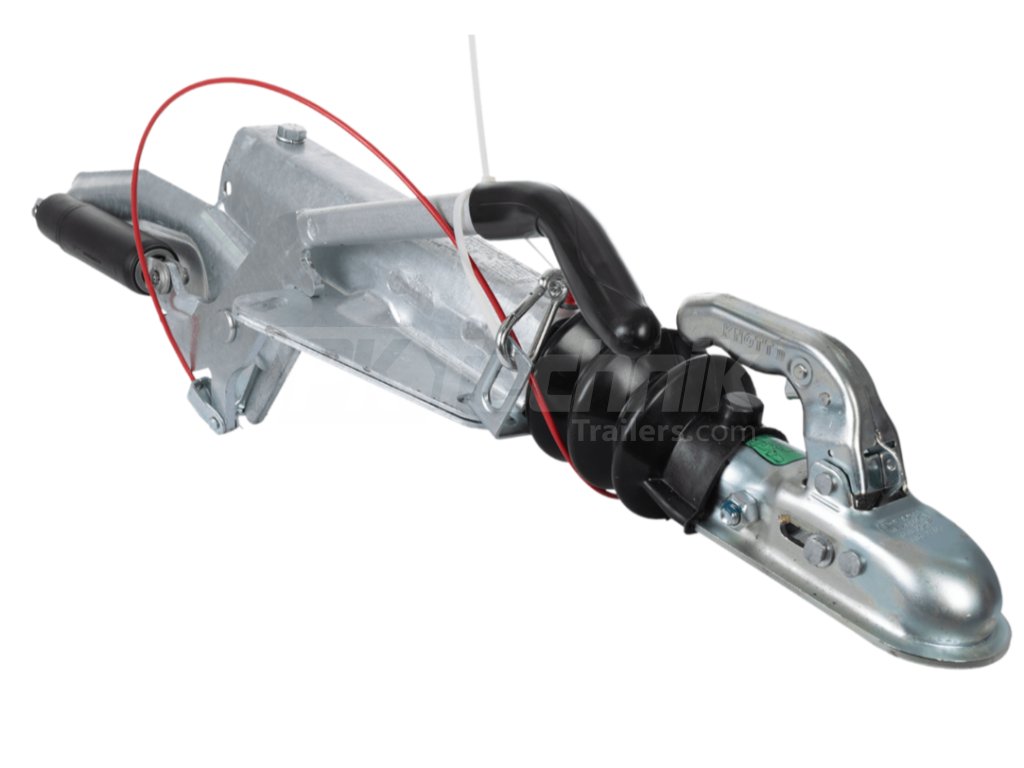

This ramp brake is designed for both top and bottom mounting on "V" shaped drawbar.

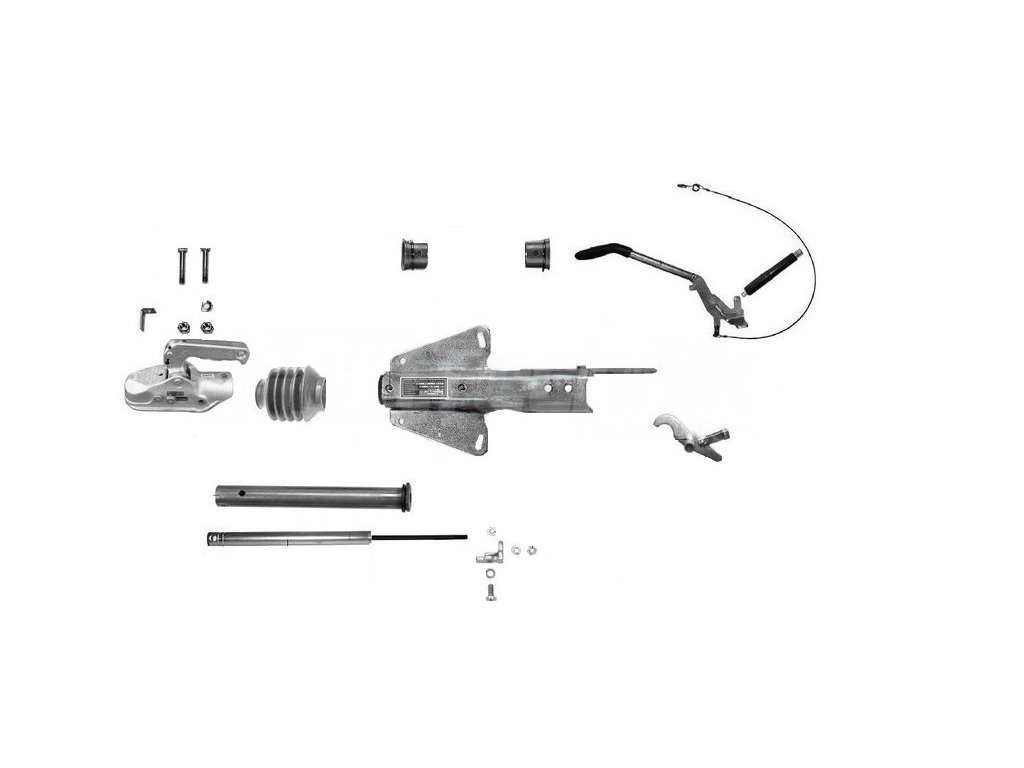

The brake is supplied complete, including the ball clutch and safety cable.
for total trailer weight: 1100 to 2000 kg
max. permissible vertical load: 100 kg
combinable with bike units: KNOTT type 16-1365 (160x35), 20-2425/1 (200x50) and 25-2025 (250x40)
The brake is supplied complete, including the ball clutch and safety cable.
| Category: | Brakes on "V" drawbar |
|---|---|
| Weight: | 1 kg |
| EAN: | 60008008 |
| maximální povolené svislé zatížení (kg): | 100 |
| drawbar mountable: | V-drawbar |
| for total trailer weight max. (kg): | 2000 |
| for total trailer weight min. (kg): | 1100 |
| for wheeled units: | AL-KO type 1637, AL-KO type 2051 (pin diameter 34 mm), AL-KO type 2051 (pin diameter 39 mm), KNOTT typ 16-1365 (160x35), typ 20-2425/1 (200x50) a typ 25-2025 (250x40) |
| bottom mounting: | Yes |
| connecting device: | K20 |
| top mounting: | Yes |
