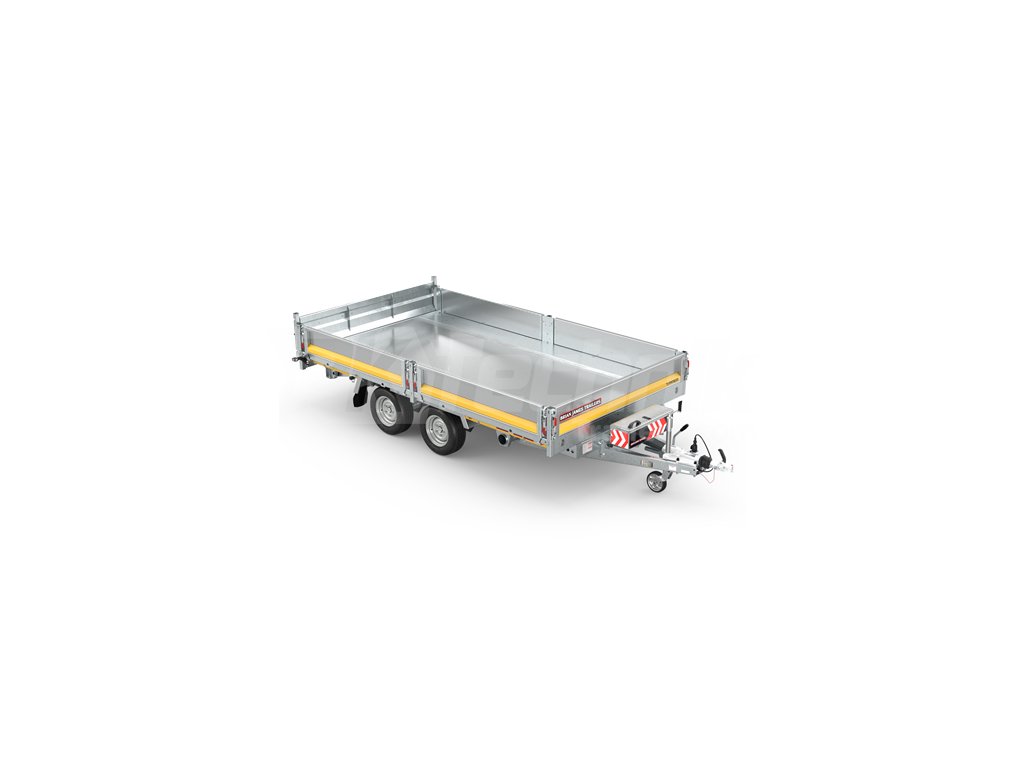

Dump truck BRIAN JAMES 370x210, 2x piston rods, 3500 kg
- Total weight: 3500 kg
- Operating weight: 1101 kg
- Cargo capacity: 2399 kg
- Length of loading area: 3700 mm
- Loading area width: 2100 mm
- Loading height: 670 mm
- Total length: 5030 mm
- Total width: 2110 mm
- Sidewall height: 300 mm
The most robust hydraulically foldable cargo flatbed trailer with two hydraulic motors (piston rods), from the British company BRIAN JAMES, with a built-in battery for independent tilting of the body, without the need for connection to an electrical power source. It is produced in many versions, with a wide range of basic equipment and a wide range of individual personalisation options.
Technical parameters Tipper 3500 kg
model 526-3620-35-2-12
- Total weight: 3500 kg
- Operating weight: 1101 kg
- Cargo capacity: 2399 kg
- Length of loading area: 3700 mm
- Loading area width: 2100 mm
- Total length: 5030 mm
- Total width: 2110 mm
- Sidewall height: 300 mm
- Loading height: 670 mm
- Towing coupling height: 400 mm
- Wheel dimensions: 195/60 R12C
- Trailer tipping: YES
Standard trailer equipment:
- Sidewall color: yellow
- Wheels: steel 195/60 R12C
- 2x electrohydraulic hydromotor
- Ramp storage: YES (under the loading area)
- Rear headboard with side closing: extra charge
- Raids: NO, extra charge, depending on type
- Spare wheel: YES included
- Support wheel: YES
- Complete LED lighting
- Towing hitch with lock
- Accessory box:
-
remote control tilting
-
connector for C-TEC charger
-
starter cables for possible power supply from the towing vehicle when the trailer battery is discharged
Equipment at extra cost:
- Second row of sidewalls
- Second row of extra high sidewalls (660 mm)
- by combining a rear face with a side closing
- Clamping straps for load transport
- Wheel nut tightening indicator set
- Electric winch
- Access ramps
- Axle shock absorbers
| Category: | Brian James tippers |
|---|---|
| Weight: | 1101 kg |
| Typ přívěsu: | Valník, Sklopný valník, Valník s plachtou, flatbed, dump truck |
| Bržděný: | ANO |
| Použití přívěsu: | Nákladní přívěs, přeprava betonu, Přeprava písku, přeprava dřeva, přeprava zeleně, Přeprava paletového zboží |
| Počet náprav: | 2 |
| Typ náprav: | Standard torsion axle |
| Celková hmotnost: | 3500 kg |
| Provozní hmotnost: | 1101 kg |
| Doložitelnost: | 2399 kg |
| Celková šířka: | 503 cm |
| Celková šířka: | 211 cm |
| Celková výška: | 115cm |
| Rozměry ložné plochy: | 370 cm |
| Šířka ložné plochy: | 200 cm |
| Výška ložné plochy: | 73 cm |
| Sklápění: | ANO - elektrohydraulicky, ANO - manuálně, jednostranné |
| Tlumiče náprav: | za příplatek |
| Rezervní kolo: | ANO, V ceně |
| Konstrukční rychlost: | 140 km/h |
| Průměr kola: | R12 |
| Typ disku: | ocelový |
| Brakes: | Braked |
